Re: K98 Springer Projects

Postby raffles » Sun May 11, 2014 11:06 pm

Have run into a bit of an issue with my build. Almost everything is cut, shaped and ready to assemble but I've noticed that the screw holding the barrel assembly down onto the stock isn't used in this conversion and the screw holes at the rear of the reciever holding the action into the stock through the trigger plate don't line up to be used. How have you guys got around this? I've noticed some people using a bit of the rear of the dboys reciever to hold the back down but what about the front?
oddball says -
A good spuding it's Welsh Sharia Law
User avatar
dadio
Fought at the Battle of Agincourt
Fought at the Battle of Agincourt
Posts: 3513
Joined: Sun Aug 02, 2009 8:13 pm
Location: guildford surrey

Re: K98 Springer Projects

Postby dadio » Mon May 12, 2014 5:34 pm

there is a small screw that holds the outer barrel (vsr part ) onto the breech (vsr part) ,this screw is at the bottom at the front of the breech and is slightly out of line with the front trigger guard assembly screw hole ,you can either slot the hole in the trigger guard so it lines up or drill out the hole off set in the breech and re tap it to 5mm thread ,the latter is a better solution but harder to do ,either way i'd re drill and tap the hole to 5mm as it's stronger ,you need a 4.2mm drill and m5 tap ,both can be found cheap on ebay and don't have to be high quality as its only alloy.
armoury
m1a1 Thompson,sten mk2,mp40,stg44,sterling,mk2 bren gun,lee Enfield no4 mk1,Mauser Kar98, Walther ppk,smith and Weston m10 and Mauser m712
Give me a big enough hammer and a place to stand and I could fix the world.
i'll kill a man in a fair fight or if i think he's going to start a fair fight or over a woman or.......
a problem shared is a problem halved ,but an advantage shared is no advantage at all
if a job's not worth doing then its certainly not worth doing well

User avatar
raffles
Fought at Waterloo
Fought at Waterloo
Posts: 1395
Joined: Wed May 06, 2009 4:34 pm
Location: Glasgow

Re: K98 Springer Projects

Postby raffles » Mon May 12, 2014 7:11 pm

Thanks, I've got a tap set here. Wasn't sure on the ability to tap this metal without just ploughing through it. I'll maybe epoxy a nut onto it too just to give an extra bit of thread to make sure I don't strip it.
oddball says -
A good spuding it's Welsh Sharia Law
User avatar
dadio
Fought at the Battle of Agincourt
Fought at the Battle of Agincourt
Posts: 3513
Joined: Sun Aug 02, 2009 8:13 pm
Location: guildford surrey

Re: K98 Springer Projects

Postby dadio » Mon May 12, 2014 7:32 pm

use plenty of lube and it wont tear ,it's quite thick in that area
armoury
m1a1 Thompson,sten mk2,mp40,stg44,sterling,mk2 bren gun,lee Enfield no4 mk1,Mauser Kar98, Walther ppk,smith and Weston m10 and Mauser m712
Give me a big enough hammer and a place to stand and I could fix the world.
i'll kill a man in a fair fight or if i think he's going to start a fair fight or over a woman or.......
a problem shared is a problem halved ,but an advantage shared is no advantage at all
if a job's not worth doing then its certainly not worth doing well

User avatar
raffles
Fought at Waterloo
Fought at Waterloo
Posts: 1395
Joined: Wed May 06, 2009 4:34 pm
Location: Glasgow

Re: K98 Springer Projects

Postby raffles » Wed May 14, 2014 1:09 am

Aha, small problem, my base rifle is a Bar-10 I think so it doesn't have the same mounting holes. (I have a TM VSR here for reference so I know the bit you meant)

It looks like any mounting hole I'd drill might go through the little screw on panel that holds the outer barrel to the receiver, not that this would be an issue as a dirty great bolt would hold it just fine too. I'll just have to be extra careful with the measuring and tapping.
oddball says -
A good spuding it's Welsh Sharia Law
User avatar
dadio
Fought at the Battle of Agincourt
Fought at the Battle of Agincourt
Posts: 3513
Joined: Sun Aug 02, 2009 8:13 pm
Location: guildford surrey

Re: K98 Springer Projects

Postby dadio » Wed May 14, 2014 5:57 pm

that is exactly the screw hole i meant ,it is just off line with the trigger guard screw hole .i think its a 3mm screw hole you need to drill out to take a 5mm screw but the new hole has to be off centre from the original if you can understand what i mean.
armoury
m1a1 Thompson,sten mk2,mp40,stg44,sterling,mk2 bren gun,lee Enfield no4 mk1,Mauser Kar98, Walther ppk,smith and Weston m10 and Mauser m712
Give me a big enough hammer and a place to stand and I could fix the world.
i'll kill a man in a fair fight or if i think he's going to start a fair fight or over a woman or.......
a problem shared is a problem halved ,but an advantage shared is no advantage at all
if a job's not worth doing then its certainly not worth doing well

User avatar
raffles
Fought at Waterloo
Fought at Waterloo
Posts: 1395
Joined: Wed May 06, 2009 4:34 pm
Location: Glasgow

Re: K98 Springer Projects

Postby raffles » Wed Oct 08, 2014 9:47 pm

I've almost got mine finished now but as I was trying to mount the sight onto the barrel theres a load of material that would need to be very carefully ground away. How did everyone else approach this? I was considering taking that section out of the bar10 barrel but am a bit concerned as it sits right over the hop and don't want it to interfere too much. Ideas?
oddball says -
A good spuding it's Welsh Sharia Law
User avatar
dadio
Fought at the Battle of Agincourt
Fought at the Battle of Agincourt
Posts: 3513
Joined: Sun Aug 02, 2009 8:13 pm
Location: guildford surrey

Re: K98 Springer Projects

Postby dadio » Thu Oct 09, 2014 2:20 pm

You just have to roughly cut as much as you can from under the sight ,then to get a nice fit I take the cut off piece of the vsr outer barrel and wrap it in course sand paper and use it to shape the under side of the sight ,move to a finer wet n dry paper as you get closer the shape you need , it takes a bit of time but you get a nice fit .Once its shaped I attach it with 2 counter sunk screw's at the rear end ,the holes are already there ,I also use an epoxy glue under the sight for extra strength and to fill any small gap's .how are you planning on hop adjustment ?
armoury
m1a1 Thompson,sten mk2,mp40,stg44,sterling,mk2 bren gun,lee Enfield no4 mk1,Mauser Kar98, Walther ppk,smith and Weston m10 and Mauser m712
Give me a big enough hammer and a place to stand and I could fix the world.
i'll kill a man in a fair fight or if i think he's going to start a fair fight or over a woman or.......
a problem shared is a problem halved ,but an advantage shared is no advantage at all
if a job's not worth doing then its certainly not worth doing well

User avatar
raffles
Fought at Waterloo
Fought at Waterloo
Posts: 1395
Joined: Wed May 06, 2009 4:34 pm
Location: Glasgow

Re: K98 Springer Projects

Postby raffles » Thu Oct 09, 2014 3:18 pm

I've removed the slider and going to tap a hole for a grub screw through the sight block directly onto the top of the hop lever arm.
oddball says -
A good spuding it's Welsh Sharia Law
User avatar
dadio
Fought at the Battle of Agincourt
Fought at the Battle of Agincourt
Posts: 3513
Joined: Sun Aug 02, 2009 8:13 pm
Location: guildford surrey

Re: K98 Springer Projects

Postby dadio » Thu Dec 04, 2014 1:39 pm

anybody interested in making a dboy's conversion there's a cheap one going on rsov as a bone-yard gun they even have the uber rare gas bolt in stock happy hunting.
armoury
m1a1 Thompson,sten mk2,mp40,stg44,sterling,mk2 bren gun,lee Enfield no4 mk1,Mauser Kar98, Walther ppk,smith and Weston m10 and Mauser m712
Give me a big enough hammer and a place to stand and I could fix the world.
i'll kill a man in a fair fight or if i think he's going to start a fair fight or over a woman or.......
a problem shared is a problem halved ,but an advantage shared is no advantage at all
if a job's not worth doing then its certainly not worth doing well

User avatar
breadfish
Veteran
Veteran
Posts: 151
Joined: Tue Aug 19, 2014 10:08 pm
Location: Cornwall

Re: K98 Springer Projects

Postby breadfish » Wed Feb 18, 2015 12:22 am

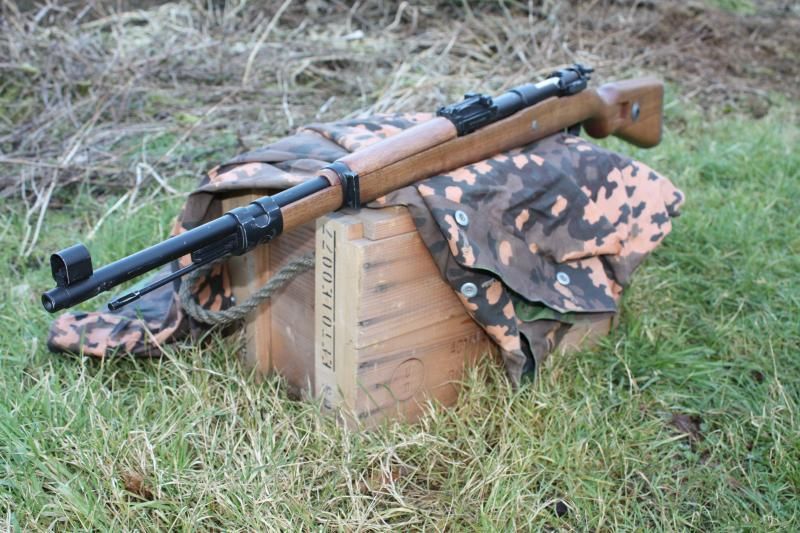

A friend of mine recently integrated a Vsr 11 into a dboys body for me. I love it!
the pictures a bit bleached, the wood isnt as bright as that :)
Rich
Image ImageImageImageImage
User avatar
dadio
Fought at the Battle of Agincourt
Fought at the Battle of Agincourt
Posts: 3513
Joined: Sun Aug 02, 2009 8:13 pm
Location: guildford surrey

Re: K98 Springer Projects

Postby dadio » Wed Feb 18, 2015 8:38 am

Looks very nice .
armoury
m1a1 Thompson,sten mk2,mp40,stg44,sterling,mk2 bren gun,lee Enfield no4 mk1,Mauser Kar98, Walther ppk,smith and Weston m10 and Mauser m712
Give me a big enough hammer and a place to stand and I could fix the world.
i'll kill a man in a fair fight or if i think he's going to start a fair fight or over a woman or.......
a problem shared is a problem halved ,but an advantage shared is no advantage at all
if a job's not worth doing then its certainly not worth doing well

Hef Legend
Raw Recruit
Raw Recruit
Posts: 2
Joined: Thu Dec 31, 2015 9:49 pm

Re: K98 Springer Projects

Postby Hef Legend » Fri Jan 01, 2016 5:40 pm

Is there someone on here who offers conversions on VSR's?
Dranyam
Raw Recruit
Raw Recruit
Posts: 1
Joined: Sun Dec 27, 2015 9:53 pm

Re: K98 Springer Projects

Postby Dranyam » Wed Feb 17, 2016 7:29 pm

Hi all, where do you source your trigger guards from? I have been searching through Ebay for months and haven't manged to find any at a decent price (sub £40). Or do you get them from the US? Hope this hasn't been covered already but I couldn't find any links to trigger guards only stocks and other metal bits.
Thanks for the help
User avatar
Mattywheels
Fought at Waterloo
Fought at Waterloo
Posts: 2326
Joined: Sat Sep 05, 2009 10:24 am
Location: Sheffield

Re: K98 Springer Projects

Postby Mattywheels » Wed Feb 17, 2016 7:39 pm

I took my trigger guard from the chinasoft DBoys base rifle that the stock came from. I think that's what most of the conversions use rather than trying to use genuine (expensive!) pieces.
