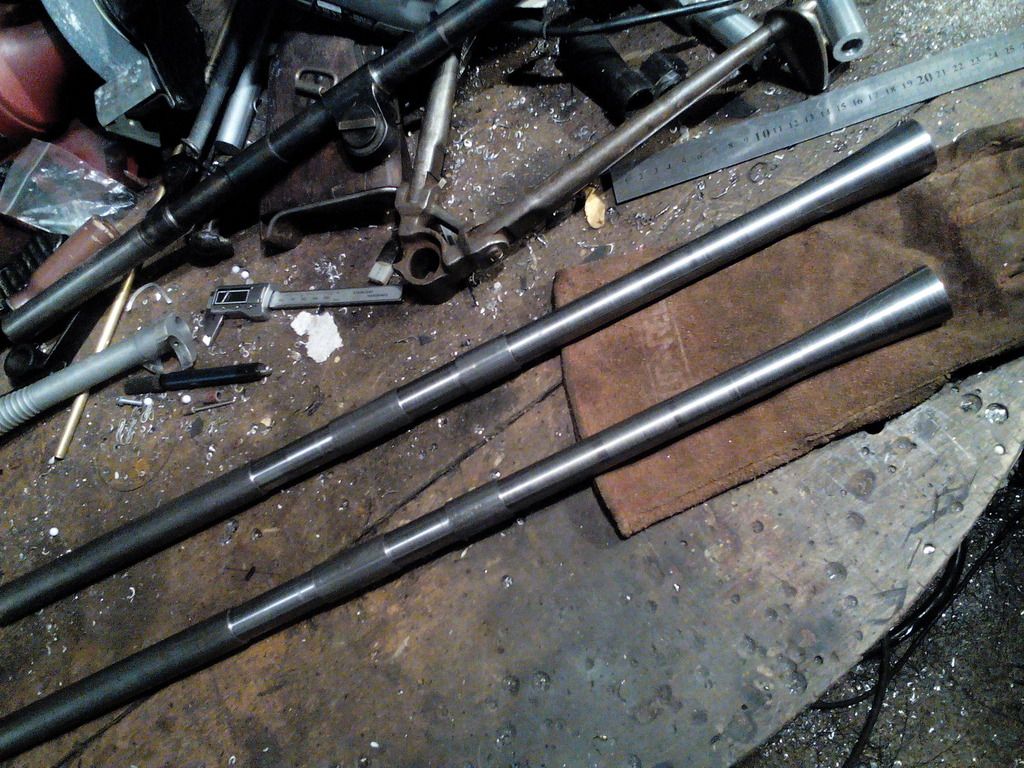

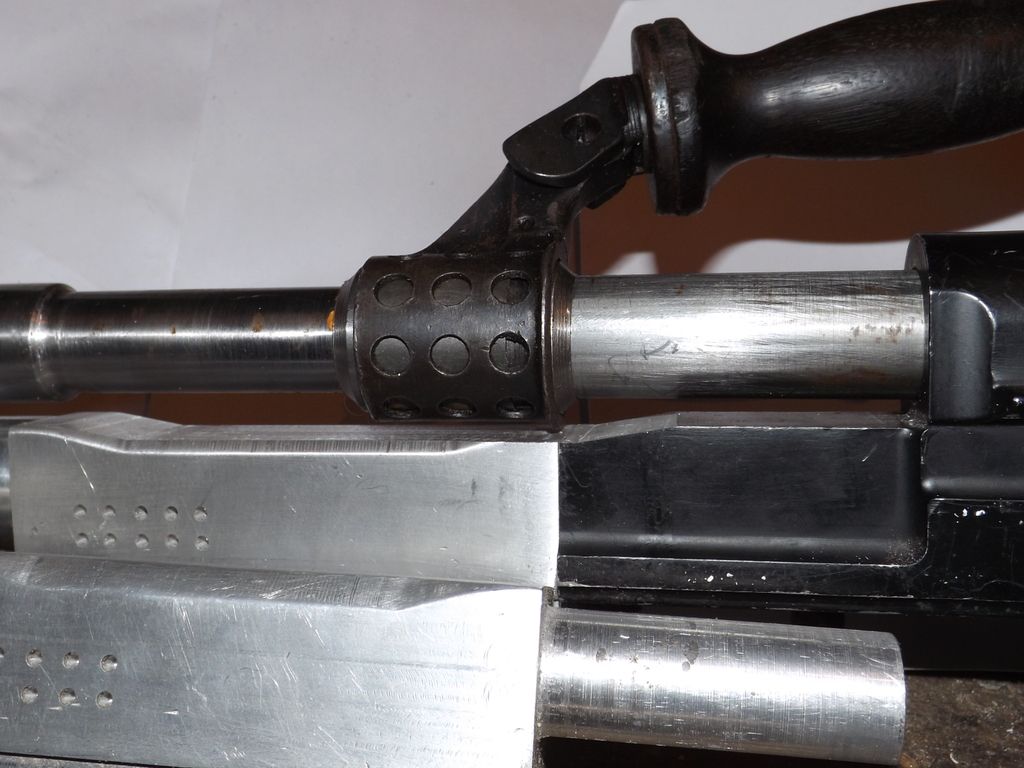

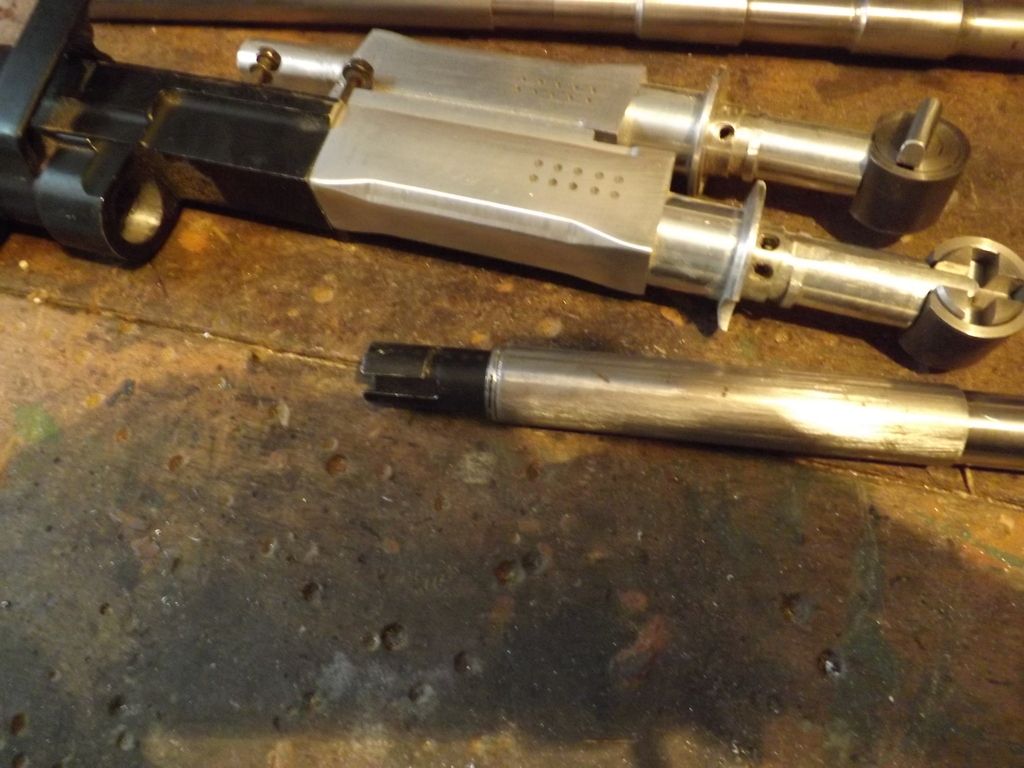

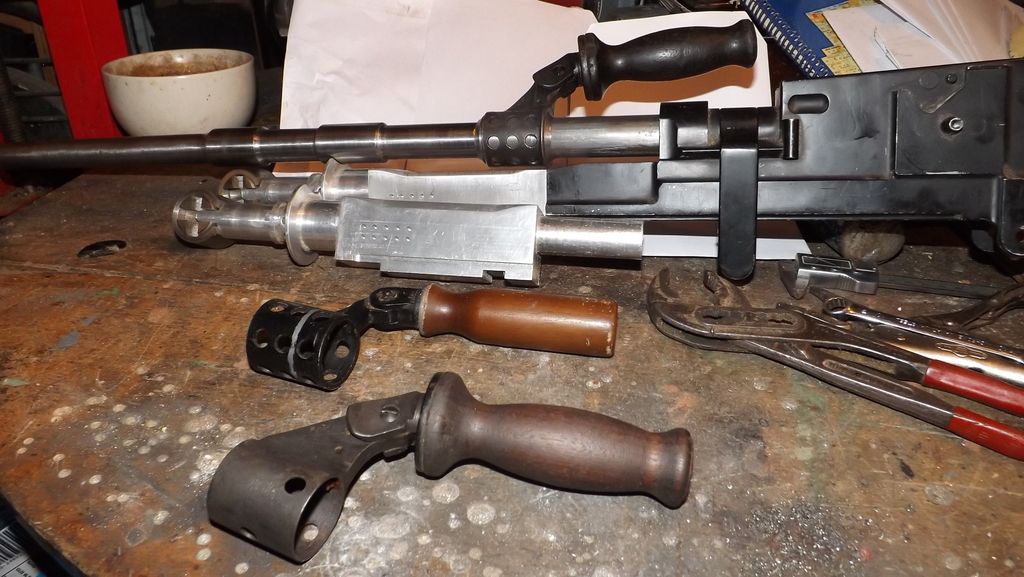

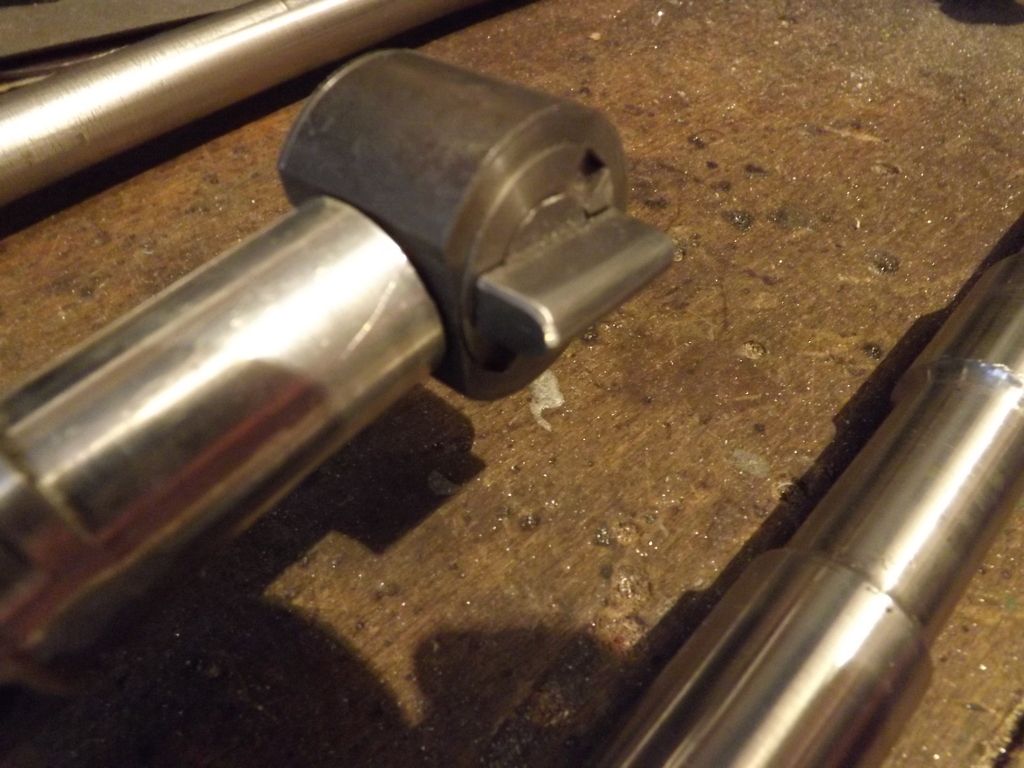

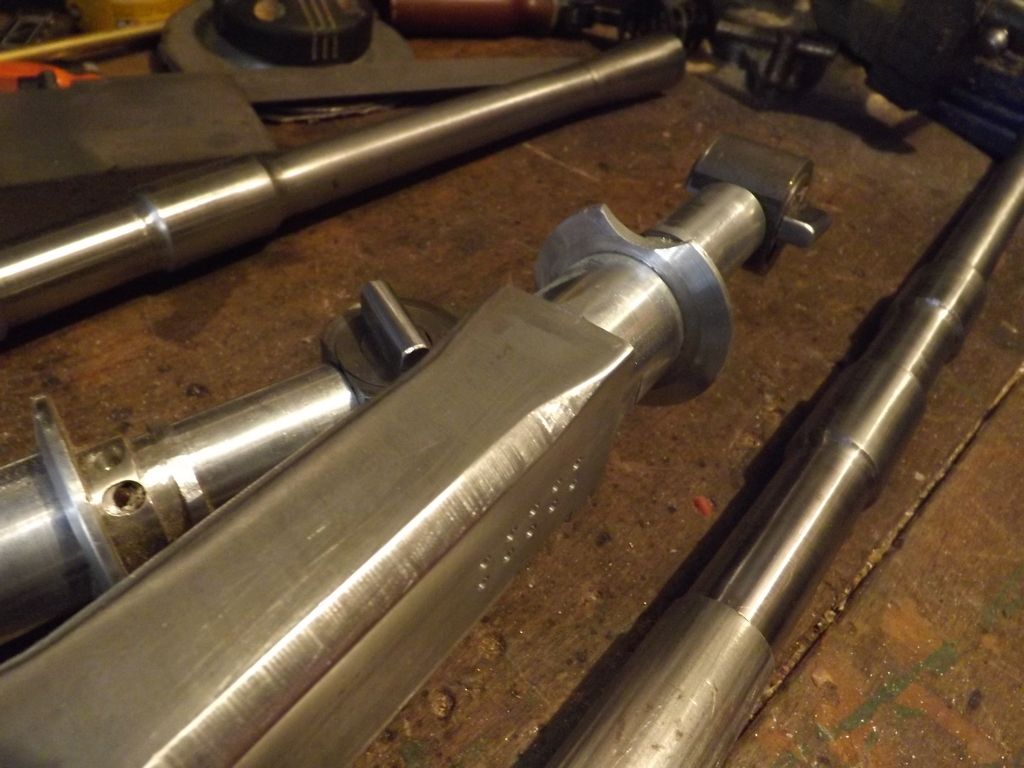

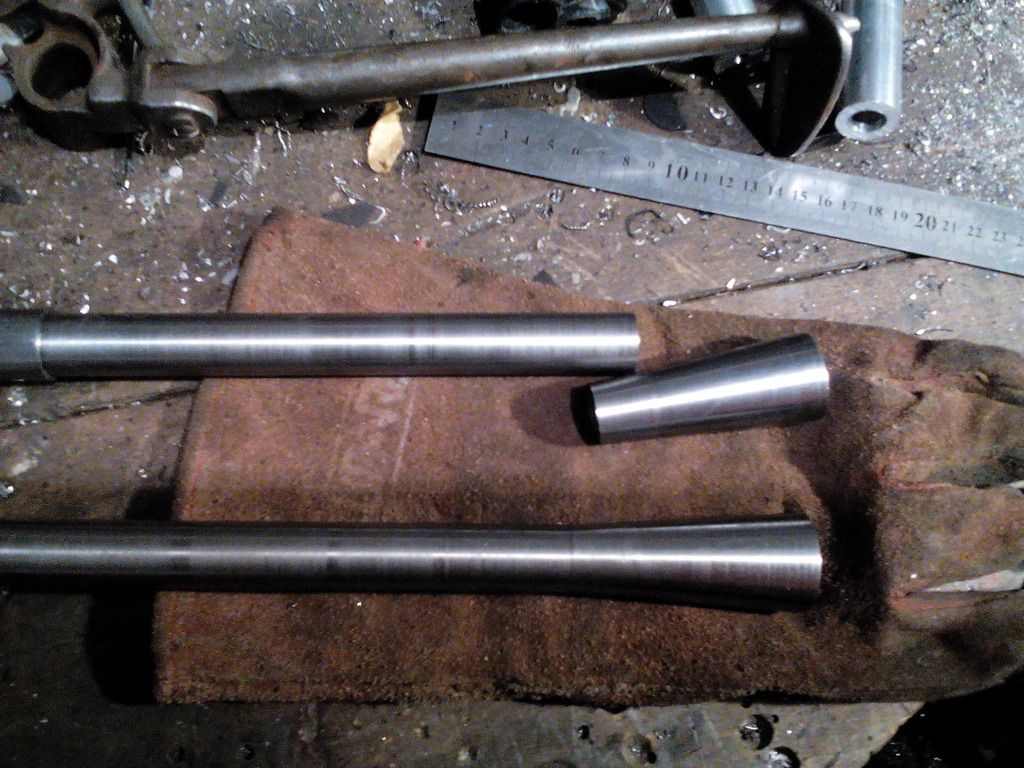

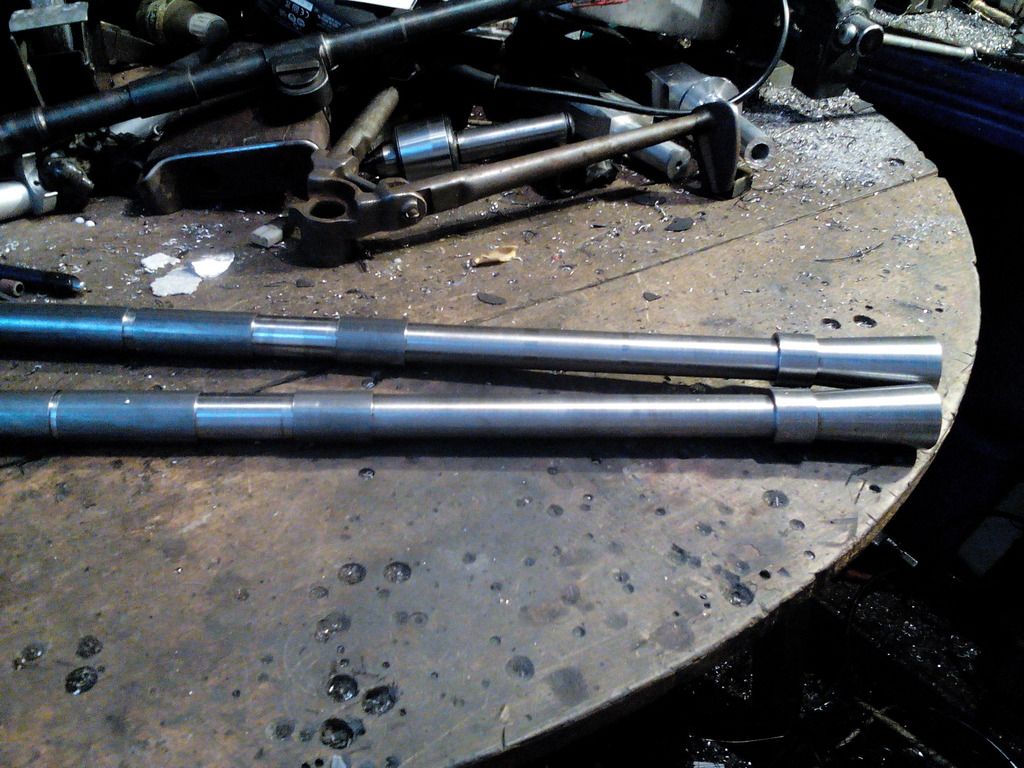

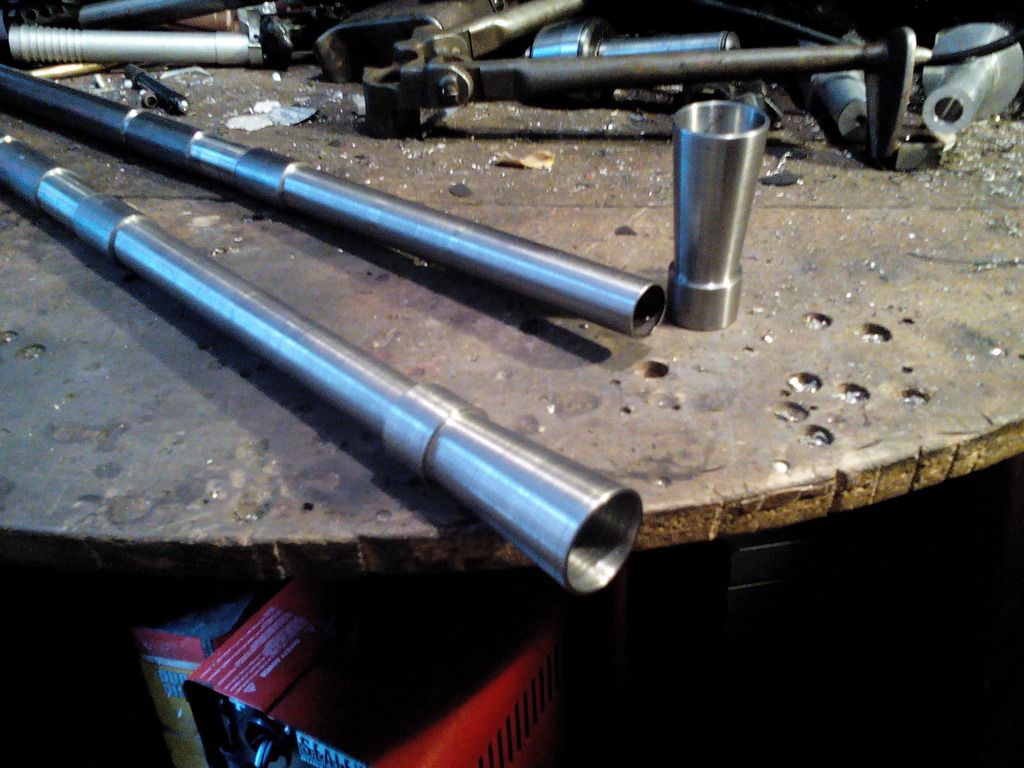

I started work on the barrels over the weekend ,the barrels have a number of different diameters over their length and to make them out of one piece of metal would require a specialty ordered piece to be made with a very thick wall ,so I'm using two pieces of tube ,one will slave over the other where needed and be welded in place to give the correct diameter at the thickest parts ,the narrower tube has a 3mm wall thickness so I can reduce the diameter on the lath for the narrower diameters ,so far I have made the first section of 22mm that inserts into the flash hider and then there is a wider section that is above the gas block ,behind this section is a 23mm section that is also now complete .next weekend I should be finished with the reduced diameters and move onto the sleeved sections that go over for the wider bits .the breech ends will be made like the zb26 barrels so they are removable in the real steel way ,at the moment the airsoft barrel has to stay in place rather spoiling the effect but I'm hoping I can change that so the outer and inner barrels come off together .
